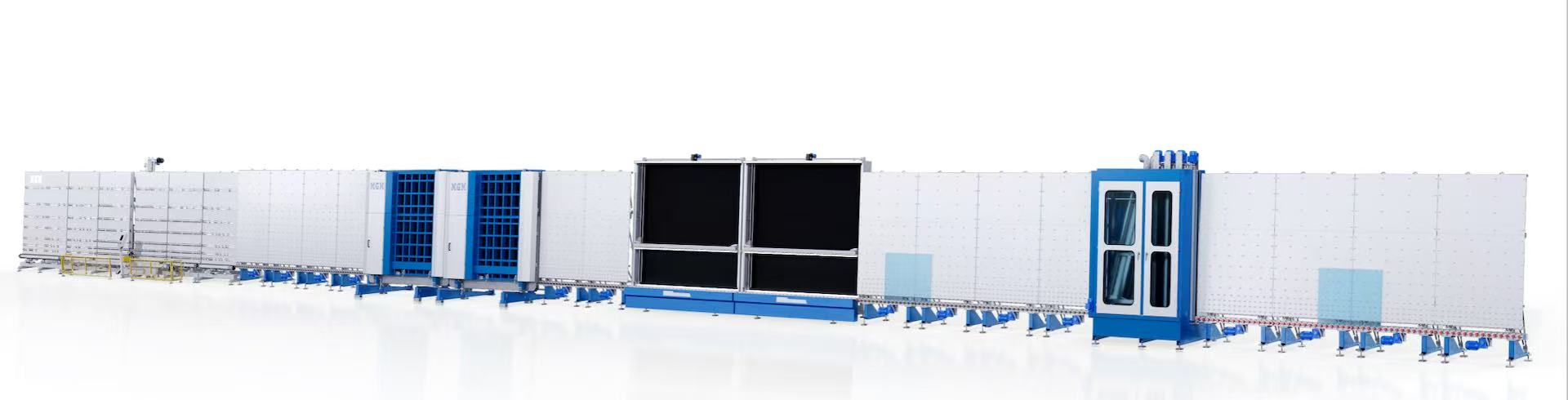

Master the large-scale glass market with our heavy-duty Jumbo Insulating Glass Production Line. Built to handle extra-large and heavy glass panels with absolute stability and precision, this line is engineered for producing monumental IGUs used in modern curtain walls and architectural facades. It features reinforced conveying systems, oversized washing and pressing stations, and powerful sealing units to guarantee consistent quality and structural integrity for jumbo formats. If your projects demand grand, energy-efficient vistas without compromising on performance, our jumbo line provides the reliable, industrial-strength capacity you need to lead in the commercial and architectural glass sector.
| Technical Data | ||||
| Min Size | 300*500mm | |||
| Washing Speed | 1-10m/min | |||
| Transport Speed | 1-50m/min | |||
| Transport Height | 550-650mm | |||
| Power Supply | ≈95kW | |||
| IG Types | Double glazing, Triple glazing | |||
| Options | In-panel gas filling | |||
| Model | ZC27/70 | ZC33/70 | ||
| Max Size | 3300*7000mm | 3300*12000mm | ||
| Glass Thickness | 3-18mm | 5-28mm | ||
| IG Thickness | ＜56mm | ＜75mm | ||
✔ High glass washing quality: fast cleaning speed, low noise, sand and carbon filters with soft coated LOWE brushes and air knives ensuring a water-free glass surface with no scratches
✔ Inspection and spacer placement station featuring a specially treated coating to reduce glare and enable comprehensive inspection
✔ Gas filling pressing: rapid argon gas filling over 90% efficiency, precise lamination, servo-controlled, and high pressure accuracy
✔ Thermal aging treatment ensuring long-term frame stability with no deformation
✔ High-precision gantry machining center guaranteeing superior structural machining accuracy
✔ Single-piece pressing panel design ensuring even and consistent pressing flatness
